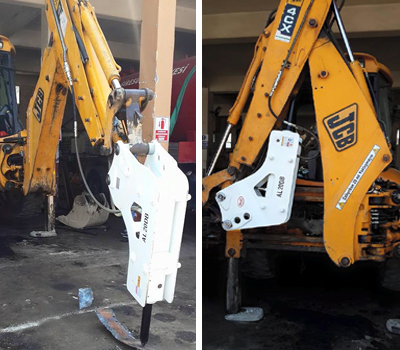

Backhoe Loader Type

 Item/Model

Unit

AL20

AL30

 AL40

 Sel​​​​ection of

Machine

ton

2.5~4.5

4~7

7~14

 lbs

8,818~15,432

13,228~19,842

15,432~30,865

 Operating Weight

(Mount Cap+Rod)

 kg

297

375

520

 lbs

595

827

1,146

Oil Flow Rate

 l/min

40~80

50~90

60~100

 g/min

10.6~21.1

13.2~23.8

15.8~26.4

 Setting Pressure

(of Machine)

 bar

170

170

190

 psi

2,466

2,466

2,756

 Operating Pressure

(of Breaker)

 bar

110~140

110~140

130~160

 psi

1,595~2,030

1,595~2,030

 1,885~2,320

 Impact Rate

 bpm

 500~900

500~900

400~800

 Chisel Diameter

 mm

68

75

85

 inch

2.68

2.95

3.35

 Impact Energy

 kg f-m

75

100

150

 joule

735

​​​​981

1,471
